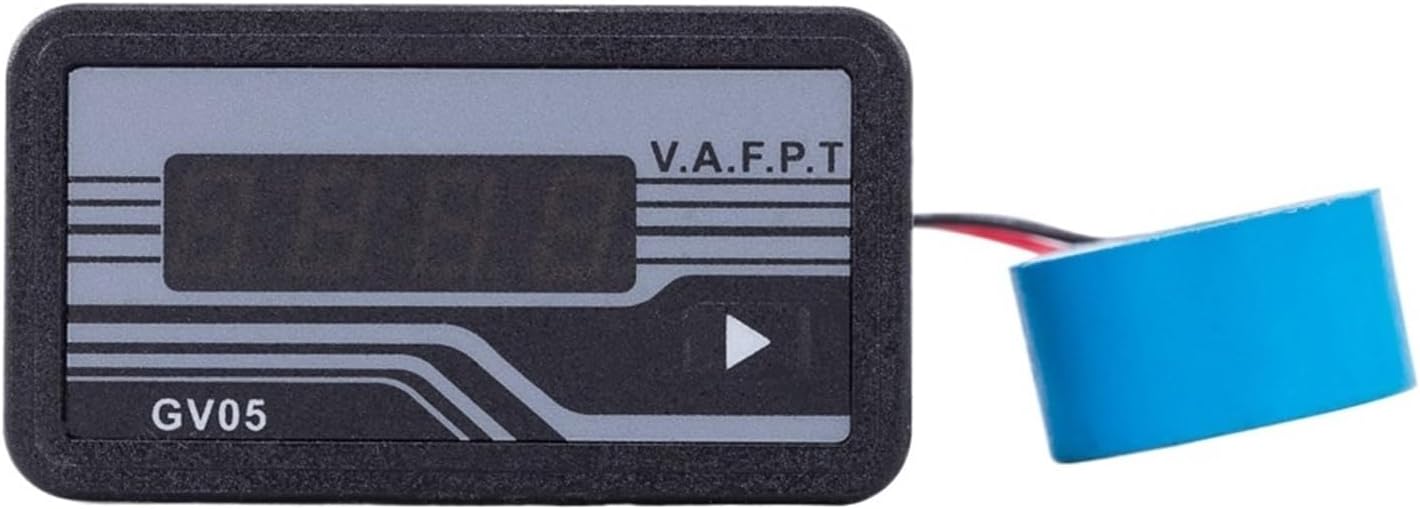

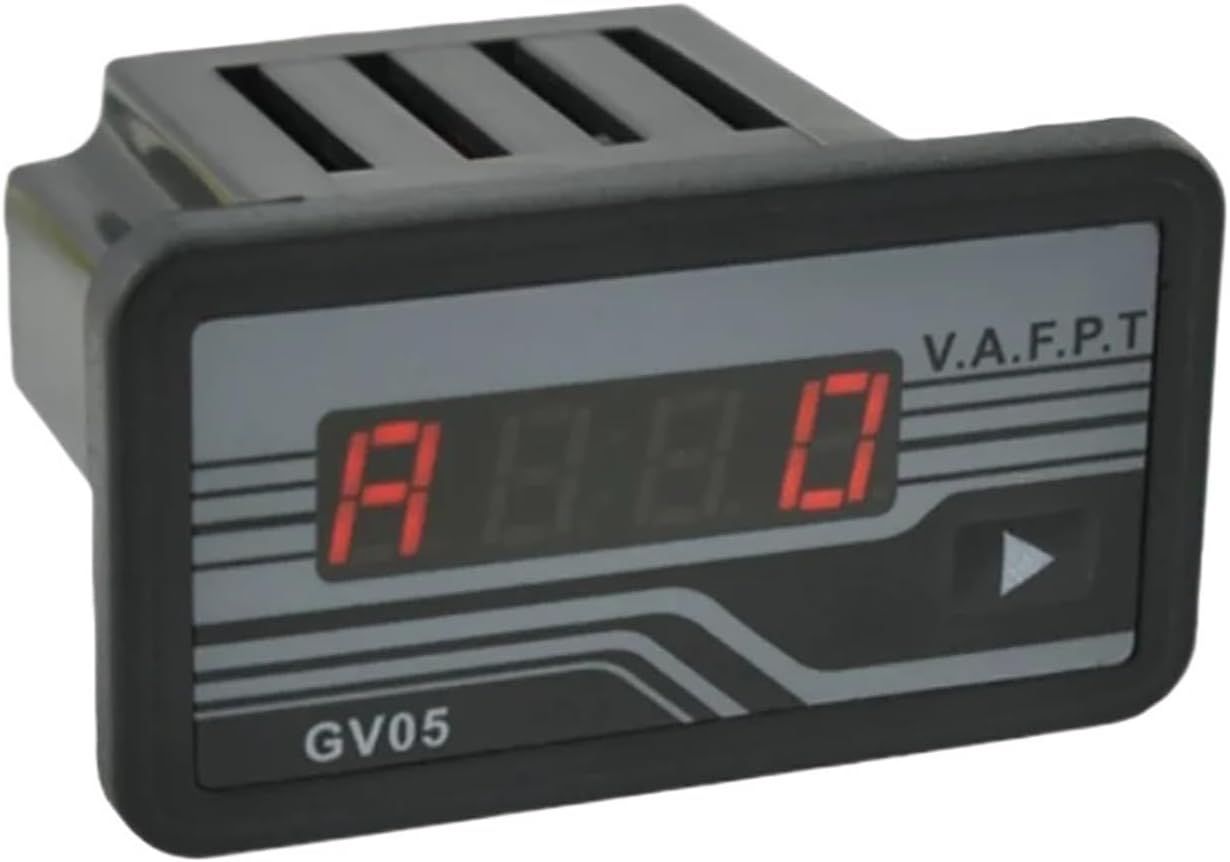

AC220V GV05 5in1 Digital Display Meter Generator Instrument Module Measurement Voltage Frequency Current Power Running Time

Alternators & GeneratorsGV05 5in1 digital generator instrumentGV05is one light and low price-orientated module used for checking and demonstrating voltage, current,power,frequency and accumulating time of generator. This module can replace old meters, for it can be one with multi-functions. It uses normal screw for connection which is more convenient for installation.FeaturesØVoltage, frequency and accumulating time can be checked and demonstrated in the mean time;ØResults shown by 4-position digital LED tubeØSelf-recycling of parametersØWith Page Turning ButtonsØExtra working power is not neededParameter demonstrationØPhase voltageØCurrentØPowerØFrequencyØRun timeØAccumulating timeRange and accuracyØAC voltage:Phase voltage AC165-260V,Line voltage AC300-450V;Deviation±1%ØCurrent:0-30A(In stock)/0-50A(need )/0-90A(need ),deviation±2%ØPower:0~6Kw/0-10Kw/0-18Kw,deviation±2%ØFrequency:45-70HZ,deviation±0.5%ØAccumulated time:0-9999hours(min:0.1hours),deviation±1%.SpecificationØPowerSupply: AC165-275V/ AC280-450VØConsuming power:MAX:1 WØTemperature: -40 - 75ØSize (W * H * D):60mm * 33mm * 51mmØInstallation Size(W * H): 51mm * 26mm==========Hign-concerned Chemical : NoneModel Number : GV05 5in1 AC220V GV05 5in1 Digital Display Meter Generator Instrument Module Measurement Voltage Frequency Current Power Running Time
