Adjustable Electric Boat Jack Plate – High Grade Marine Aluminum – Standard Unit - for up to 40hp Outboard Motors – by On The Fly Jack Plates

Our Standard Electric On The Fly Jack Plate is the quietest jack plate on the market. Our jack plates can be raised and lowered by a up/down push button while on the water within seconds from top to bottom. We have made it simple for YOU! Just mount the jack plate, connect it to the battery with our easy quick connectors, and go! Approved for up to 40hp motors (for motors without factory trim and tilt or standard BIA bolting pattern). Works with 0-20hp motors with electric trim and tilt. Our electric actuator mounts inside the jack plate housing. 3 year warranty on the jack plate housing 1 year warranty on the electric actuator. Pre-drilled for transom mounting (transom side pre-drilled holes are 8 inches across and 8 1/4 inches down from each other). The Standard Electric On The Fly Jack Plate is easy to install and connect wires to the battery. It comes with easy weatherproof connecters. All you have to do is just push the 2 connectors together once you have your relay harness hooked up to the battery and your new jack plate is working. Jack Plate housing WEIGHT: 23lbs JACK PLATE DIMENSIONS: Height – 10 1/2” Width (Transom Side) – 12 ½” Width (Motor Side) – 13 ¼” Set Back – 5” (total length from the transom side to the back of the motor slide) Motor Plate Height – 12 ½” Motor Mounting Plate (Inside Brackets where the motor would mount) – 10 ¾” MAX RISE (travel): 6 inches of travel. Plus, depending on where you mount the electric actuator you can get up to 8 inches of rise. ACCESSORIES INCLUDED: Jack plate housing, On The Fly Electric Actuator, Up/Down switch, relay harness, and 10 feet of wiring from the electric actuator and up/down switch to the battery. ACCESSORIES NOT INCLUDED: Transom mounting accessories are not included in purchase. On The Fly Jack Plates recommends 4 each ½”- 3 1/2” long bolts – stainless steel 4 each ½”- lock nuts – stainless steel 8 each 1/2’”-flat washers – stainless steel Motor Clamp Spacers

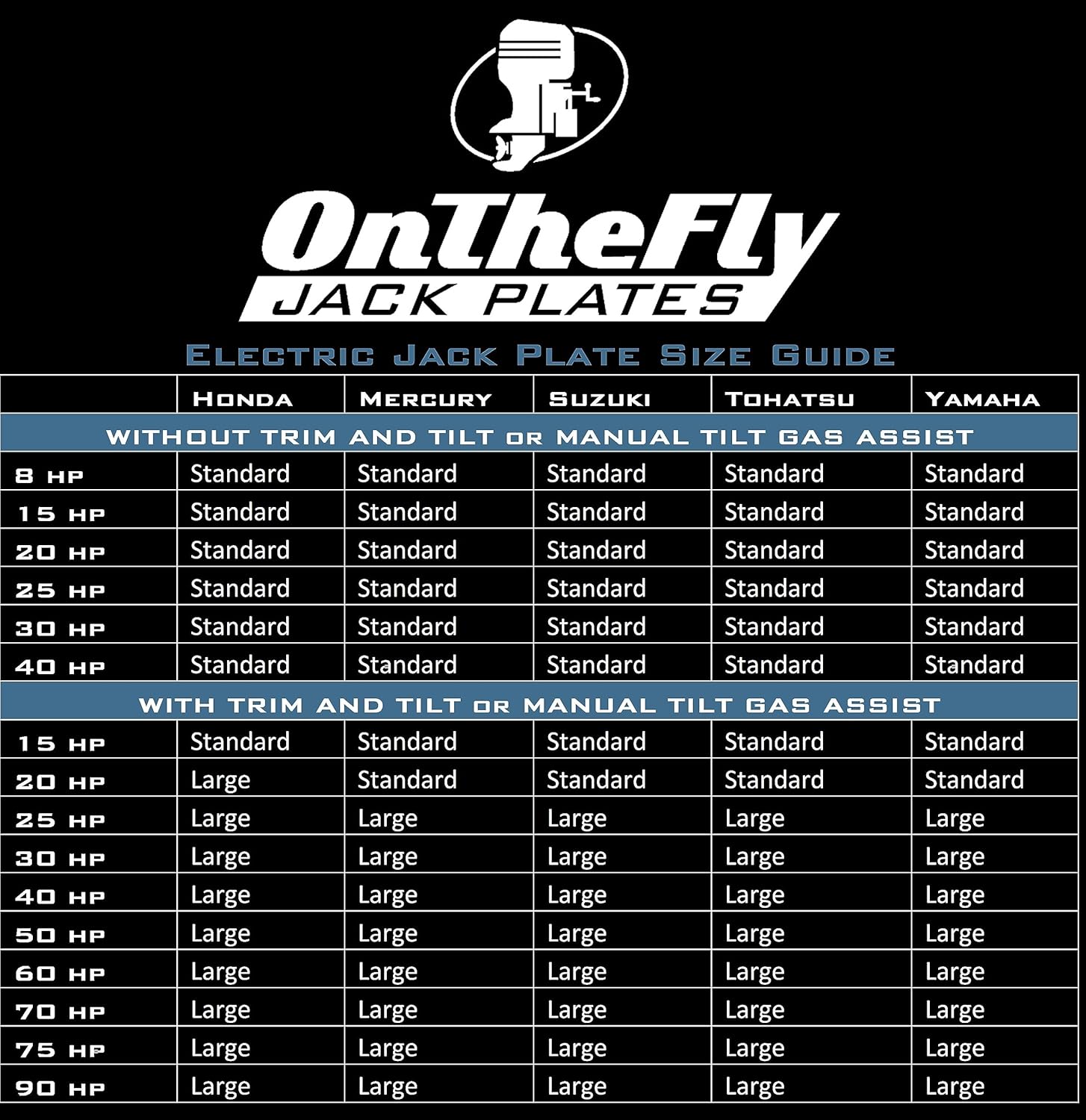

• Approved for up to 40hp motors (for motors without factory trim and tilt or standard BIA bolting pattern)
• Works with 0-20hp motors with electric trim and tilt
• The Standard Electric On The Fly Jack Plate is easy to install
• Our jack plates can be raised and lowered by a up/down push button while on the water within seconds from top to bottom.
• 3 year warranty on the jack plate housing - 1 year warranty on the electric actuator
