VILTROX DC-X3 6" Camera Field Monitor Kit with Rig Cage 2000nits FHD 1920x1080 IPS Touchscreen with 4K HDMI/3G-SDI Loop in/Out, 3D LUTs Video Peaking Focus Assist Waveform, Sunshade Hood, Battery
Product details
| Management number | 209183044 | Release Date | 2026/03/29 | List Price | $95.36 | Model Number | 209183044 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- DISPLAY SPECS: VILTROX DC-X3 Kit enables a 6-inch 2000 Nits high-bright IPS touchscreen display, 160° wide viewing angles, 4K HDMI full HD 1920x1080 resolution at 30Hz, SDI interfaces support up to 1080p 60hz video signal, 1000:1 contrast ratio, 60Hz refresh rate, and SRGB/Rec.709 professional color gamut coverage.
- Custom 3D LUTs, Versatile Monitoring: By importing 3D LUT through a USB-A interface, and the VILTROX DC-X2 camera monitor has many professional monitoring functions, such as Parade waveform, Oscillogram(RGB/YUV/Y), vector graph, brightness histogram, auxiliary focus, audio column, image flip, false color, etc.

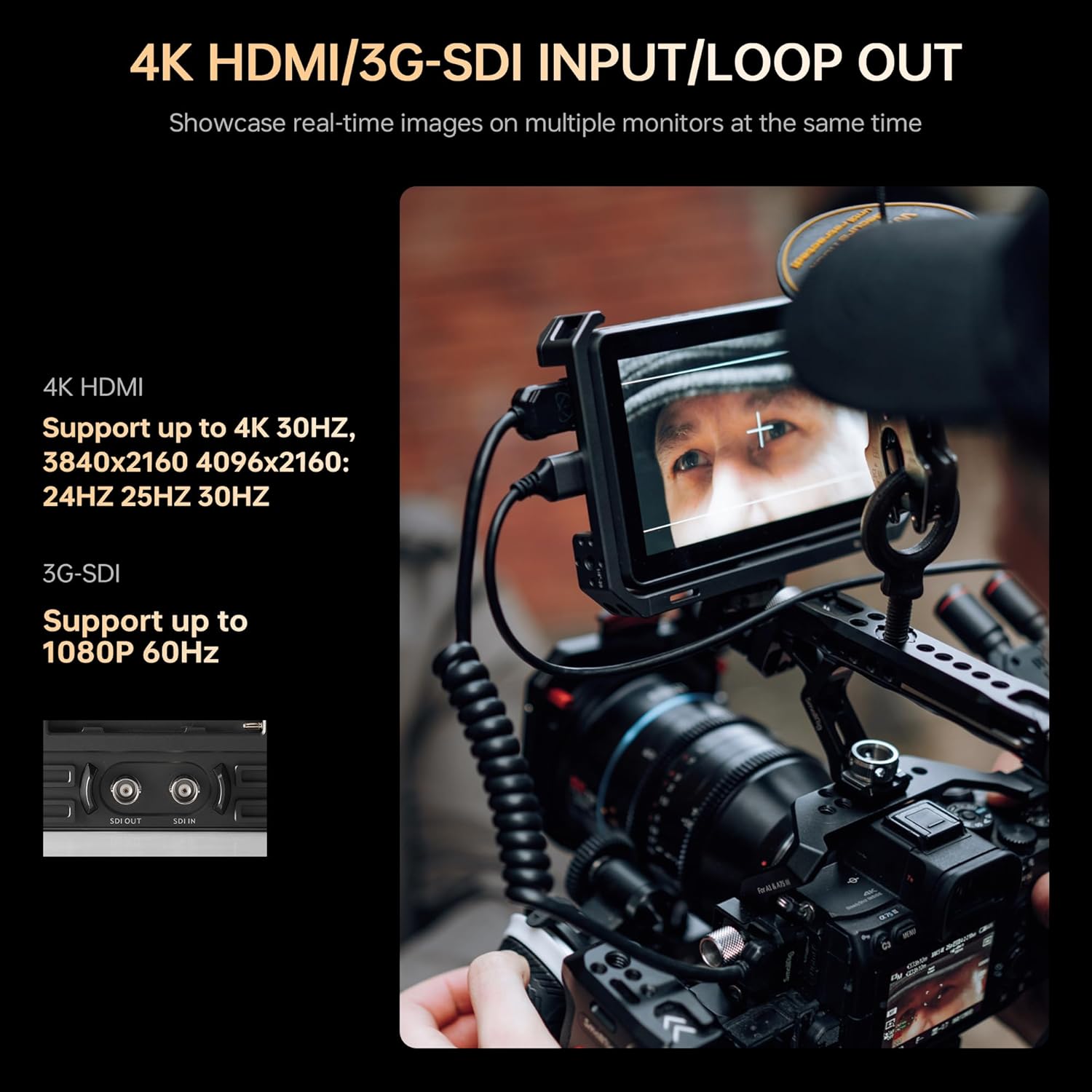

- 4K HDMI / 3G-SDI Loop In & Out: The VILTROX DC-X3 camera monitor features 4K HDMI ports support up to 4K 30Hz, 3840X2160p, 4096X2160p (30/25/24Hz) HDMI signals, 3G-SDI ports support up to 1080p 60Hz video signal, which synchronizes the camera footage clearly to a larger screen, allowing the directors and photographers to watch from different angles and enjoy real-time monitoring. Plus, you can monitor audio using the 3.5mm stereo headphone jack.
- Full Touch Screen Control: Viltrox DC-X3 6" monitor is equipped with an intuitive user interface (UI) design, easy and convenient touch commands to quickly wake up the menu on the screen, then adjust camera assist functions, brightness, contrast, and settings.
- PROTECTIVE DESIGN: Comes with a protective monitor cage rig and sunshade hood for optimal viewing and equipment safety. Built with an ultra-quiet cooling fan and temperature sensor, the monitor automatically adjusts fan speed based on the device's temperature.
- Versatile Power Supplies: The DSLR monitor accepts the NP-F series lithium battery(including 1pcs NP-F550 Battery) as a power source. Besides those, the camera monitor accepts the DC IN 12- 18V/2A DC power supply and adds a Type-C with a voltage of ≥9V and a current of 3A power supply function, convenient for indoor and outdoor shooting activities, and never worry about running out of power.
| Brand | VILTROX |
|---|---|
| Color | Black |
| Model Name | DC-X3 RIG KIT |
| Item Weight | 2.5 Pounds |
| Screen Size | 6 Inches |
| Manufacturer | Shenzhen Jueying Technology Co., Ltd. |
| Model Number | XHJX-03459 |
| BuiltIn Media | 1x VILTROX DC-X3 Camera Field Monitor, 1x Rig Cage; 1x VILTROX NP-F550 Battery, 1x Sunshade Hood, 1x VL-550 Cold Shoe Adapter； 1x Type-C Cable, 1x HDMI Cable, 1x Mini HDMI Cable, 1x Custom Screen Protector, 1x Hard-shell Carry Case； |
| Compatible Devices | Dslr Cameras |
| Warranty Description | 1 year manufacture |
| Connectivity Technology | HDMI |
| Item Dimensions D x W x H | 1.06"D x 6.12"W x 3.87"H |
